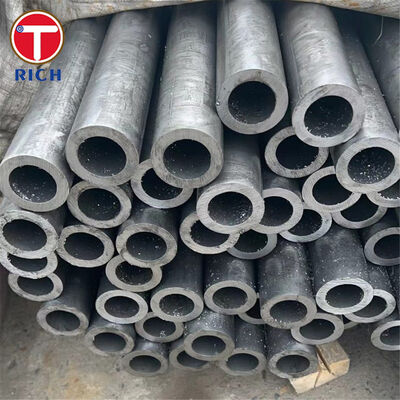

EN 10297-1 Seamless Circular Steel Tubes for Mechanical & General Engineering

Material Overview

EN 10297-1 covers seamless circular steel tubes manufactured from non-alloy and alloy steels for mechanical engineering and general engineering components where reliable strength, machinability, and dimensional stability are required. Typical supply routes include hot-finished and cold-finished tubes, with heat treatment options (e.g., normalized) selected to match forming, welding, and final-part performance expectations.

Specifications

Product form: Seamless round tube (circular)
Manufacturing: Hot-finished / cold-finished (per order)
Delivery condition (common): As-rolled / annealed / normalized / quenched & tempered (grade- and requirement-dependent)
Dimensional tolerances (typical reference per EN 10297-1 practice):

• Outside diameter tolerances commonly ±1% (and for small OD, often ±0.5 mm)

• Wall thickness tolerances depend on T/D ratio, with typical bands such as ±12.5% to ±20% depending on size relationships

Optional testing & documentation (often requested by buyers):

• EN 10204 3.1 material inspection certificate (MTC)

• Dimensional inspection report

• NDT (UT/ET) by agreement

• Mechanical testing (tensile, impact where applicable)

Key Features

• Seamless integrity for higher reliability versus welded tubing in critical load paths

• Grade flexibility (from E-series structural/mechanical grades to Cr-Mo alloy grades) for cost/performance optimization

• Good manufacturability: suitable for machining, drilling, boring, and controlled forming depending on grade & condition

• Engineering-ready traceability with heat number / batch identification and MTC alignment

Our Advantages

1. “Will the tube meet my machining and strength targets without surprises?”
   We recommend the grade + delivery condition combination based on your use case (machining vs. forming vs. high-strength shafts). Minimum mechanical property requirements are aligned to EN 10297-1 grade tables (example values shown below), reducing rework risk.

2. “Can you control OD/WT tolerances for assembly-fit components?”
   We manage production routing (hot-finished vs. cold-finished) and apply tolerance controls consistent with EN 10297-1 dimensional tolerance guidance (OD and WT tolerance bands linked to diameter and T/D ratio).

3. “How do I ensure compliance, traceability, and incoming inspection efficiency?”
   We support batch traceability, provide EN 10204 3.1 MTCs, and can add NDT and extra testing (UT/ET, impact tests when required) so your incoming QC can verify compliance quickly and consistently.

Chemical Composition

Mechanical Properties

Execution Standards

• EN: EN 10297-1

• ASTM (similar use-case): ASTM A519

• JIS (similar use-case): JIS G3441

• GOST (similar product family): GOST 8732

• GB (similar structural/mechanical usage): GB/T 8162

Application Areas

General application domains: mechanical engineering, automotive components, construction machinery, industrial equipment, structural/mechanical assemblies.

Where used (examples):

• E235 / E275: brackets, sleeves, frames, general machined parts, moderate-load shafts

• E355: higher-load structural parts, machine frames, hydraulic and mechanical assemblies requiring higher strength

• 25CrMo4 / 42CrMo4: high-stress shafts, pins, drive components, crane/boom and heavy equipment parts where higher hardenability/strength is needed
